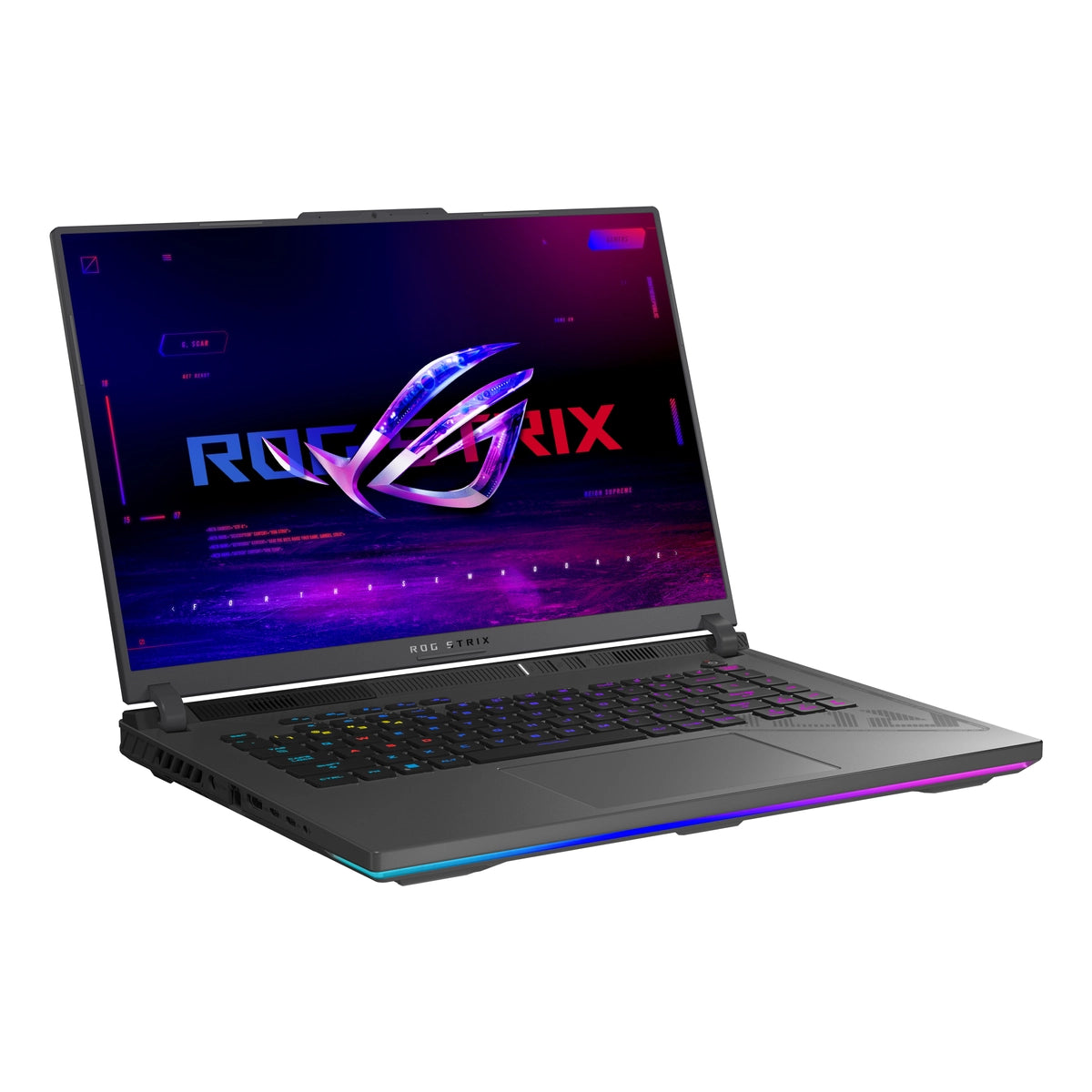

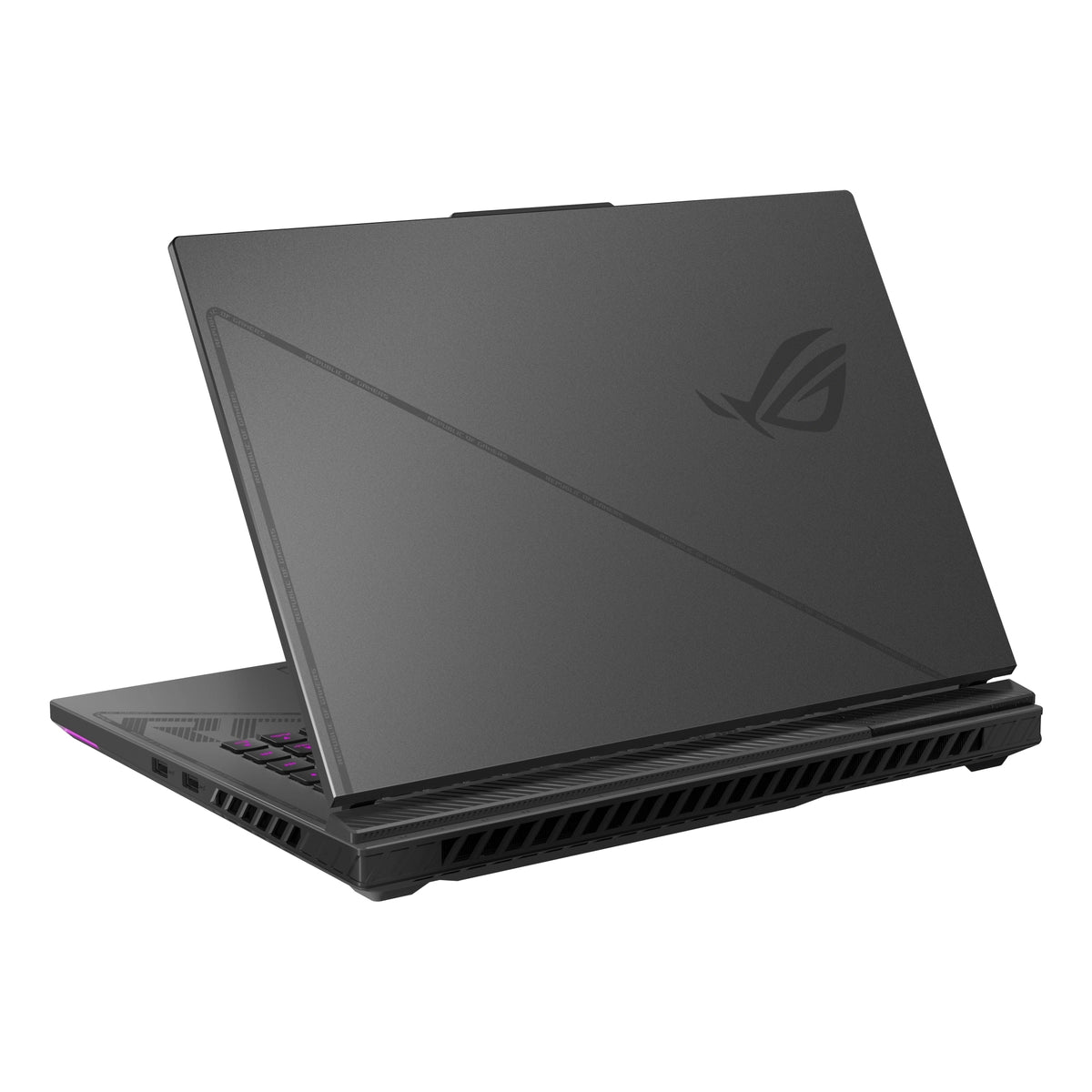

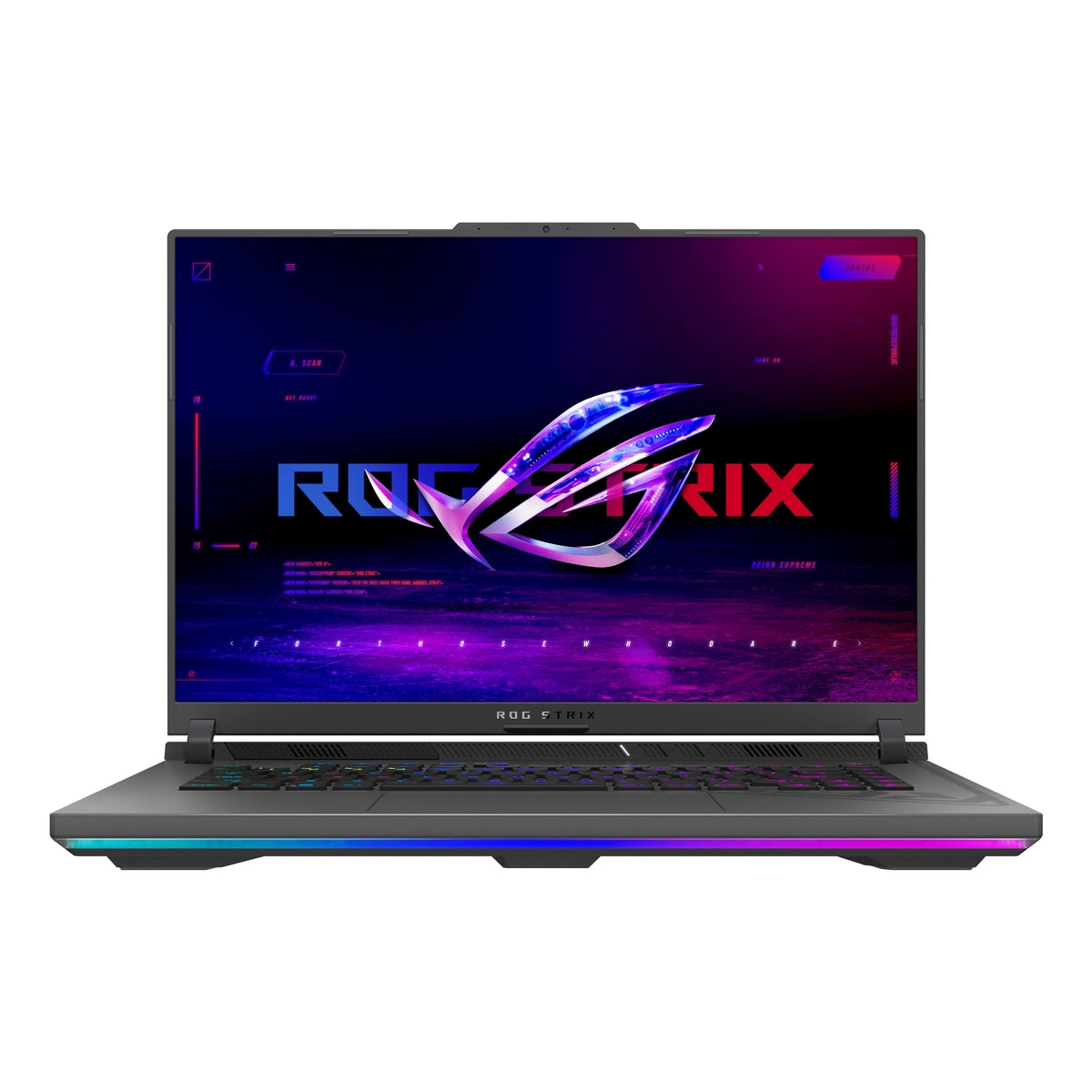

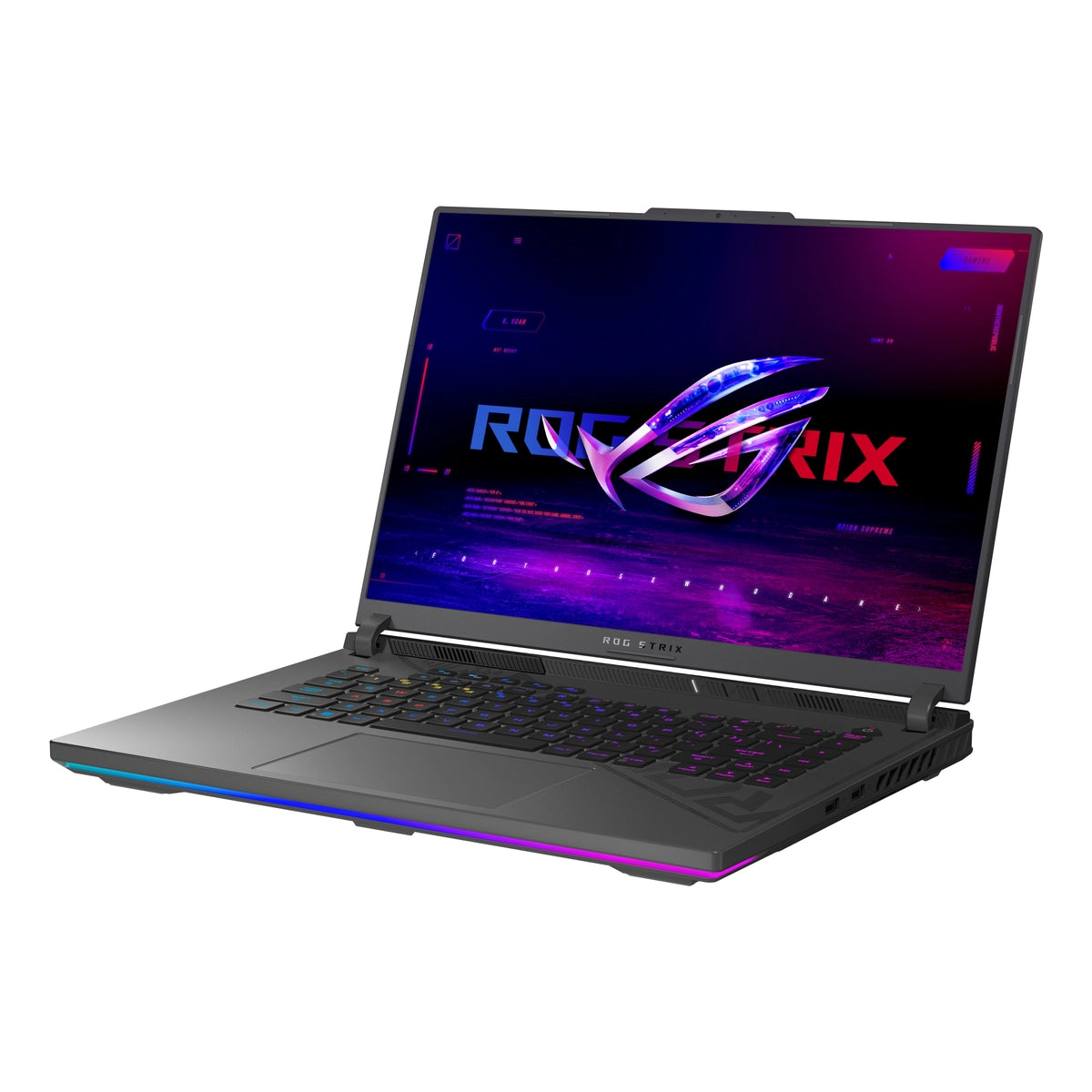

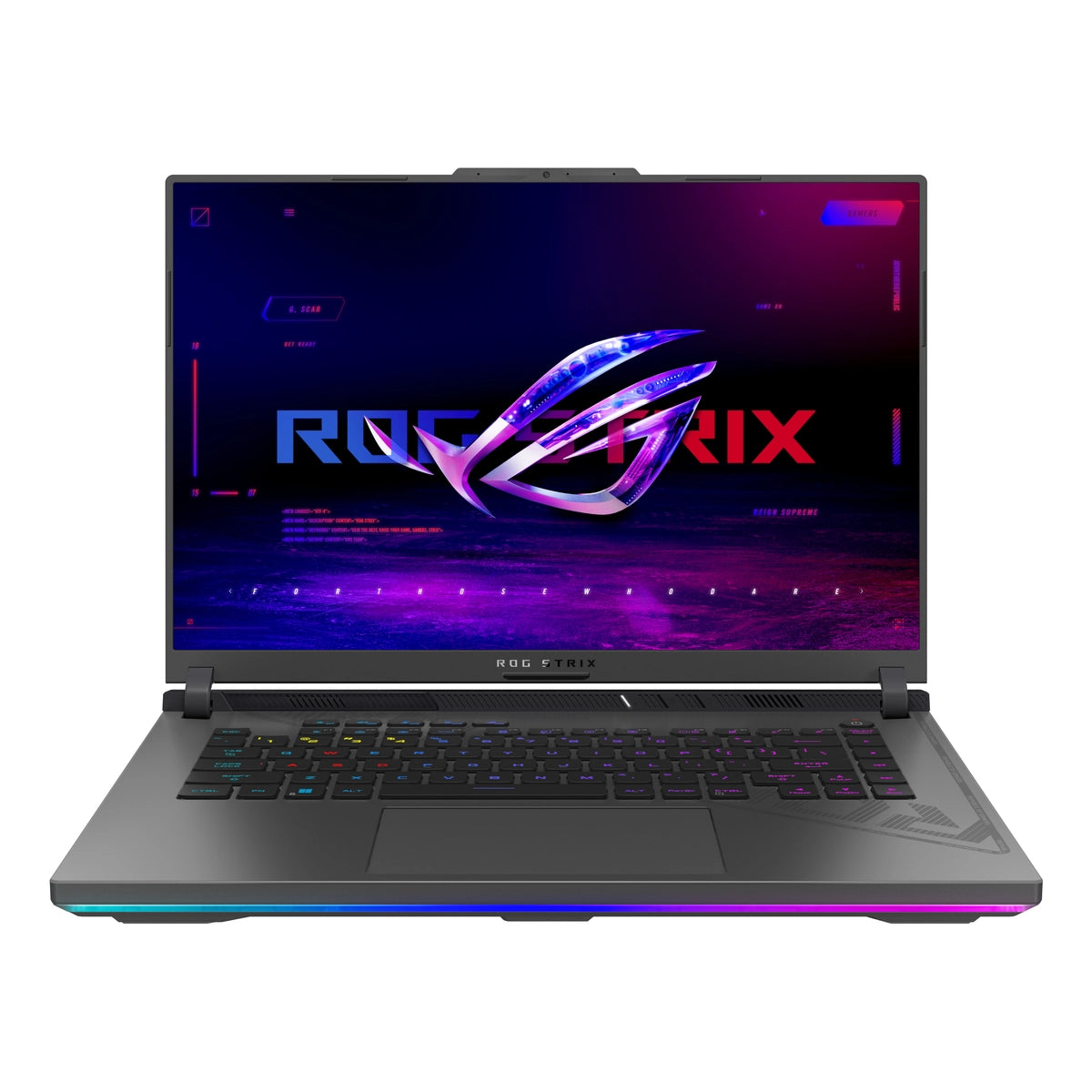

ROG Strix G16 G614JV-N3075W, Intel Core i7, 2.6 GHz, 40.6 cm (16"), 1920 x 1200 pixels, 16 GB, 512 GB

6 WUXGA i7 RTX4060 16GB 1TB Win11 H
Technical Specifications
Product Information
EAN 4711387004937
Brand Asus
SKU 10378521
Manu Part # G614JV-N3075W
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Flex Memory Access Yes
Intel Virtualization Technology (VT-x) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Embedded options available No
CPU configuration (max) 1
Processor
Processor base power 55 W
Configurable TDP-down 45 W
Processor cache 24 MB
Bus type DMI4
Efficient-core boost frequency 3.6 GHz
Maximum turbo power 157 W
Processor cache type Smart Cache
Processor family Intel Core i7
Processor boost frequency 4.9 GHz
Processor generation 13th gen Intel Core i7
Processor frequency 2.6 GHz
Processor model i7-13650HX
Processor manufacturer Intel
Processor cores 14
Memory
Internal memory type DDR5-SDRAM
Memory clock speed 4800 MHz
Memory slots 2x SO-DIMM
Internal memory 16 GB
Memory layout (slots x size) 1 x 16 GB
Memory form factor SO-DIMM
Maximum internal memory 32 GB
Memory channels Dual-channel
Keyboard
Keyboard backlit zone 4-zone RGB
Numeric keypad No
Keyboard layout AZERTY
Keyboard language Belgian
Keyboard backlit colour RGB
Pointing device Touchpad
Island-style keyboard Yes
Keyboard backlit Yes
Ports & interfaces
HDMI ports quantity 1
Thunderbolt 4 ports quantity 1
Power adapter barrel connector 6.0 mm
86%*HQ *HQ 7\SH&SRUWVTXDQWLW\ 1
USB Power Delivery Yes
USB Type-C DisplayPort Alternate Mode Yes
Intel Thunderbolt 4 Yes
Ethernet LAN (RJ-45) ports 1
Charging port type DC-in jack
86%*HQ *HQ 7\SH$SRUWVTXDQWLW\ 2
HDMI version 2.1
Combo headphone/mic port Yes
Security
Password protection Yes
Password protection type BIOS, User
Trusted Platform Module (TPM) Yes
Design
Colour name Eclipse Gray
Introduction year 2023
Product type Laptop
Product colour Black, Grey
Housing material Aluminium
Form factor Clamshell
Market positioning Gaming
Graphics
Discrete graphics memory type GDDR6
On-board graphics card Yes
NVIDIA G-SYNC Yes
Discrete GPU manufacturer NVIDIA
On-board graphics card model Intel UHD Graphics
On-board GPU manufacturer Intel
Discrete graphics card Yes
Discrete graphics card memory 8 GB
Discrete graphics card model NVIDIA GeForce RTX 4060
Storage
Storage media SSD
NVMe Yes
SSD capacity 512 GB
SSD form factor M.2
Card reader integrated No
Total SSDs capacity 512 GB
SSD interface PCI Express 4.0
Total storage capacity 512 GB
Optical drive type No
Number of SSDs installed 1
Weight & dimensions
Height (rear) 3.04 cm
Height (front) 2.26 cm
Width 354 mm
Depth 264 mm
Weight 2.5 kg
Sustainability
Sustainability compliance Yes
Sustainability certificates ENERGY STAR
Network
Wi-Fi standards Wi-Fi 6E (802.11ax)
Antenna type 2x2
Bluetooth Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Ethernet LAN Yes
Bluetooth version 5.2
Mobile network connection No
Ethernet LAN data rates 10,100,1000 Mbit/s
Battery
Battery technology Lithium-Ion (Li-Ion)
Number of battery cells 4
Battery capacity 90 Wh
Software
Operating system architecture 64-bit
Operating system installed Windows 11 Home
Camera
Front camera HD type HD
Front camera Yes
Front camera resolution 1280 x 720 pixels
Audio
Audio system Dolby Atmos
Number of built-in speakers 2
Built-in microphone Yes
Power
AC adapter frequency 50 - 60 Hz
AC adapter output voltage 20 V
AC adapter power 280 W
AC adapter input voltage 100 - 240 V
AC adapter output current 14 A
Display
Touchscreen No
LED backlight Yes
Maximum refresh rate 165 Hz
High Dynamic Range (HDR) supported Yes
Anti-glare screen Yes
Display response rise/fall 7 ms
Native aspect ratio 16:10
Display diagonal 40.6 cm (16")
Panel type IPS
Colour gamut 100
Contrast ratio (typical) 1000:1
Display brightness 250 cd/m
High Dynamic Range (HDR) technology Dolby Vision
Display resolution 1920 x 1200 pixels
HD type WUXGA
RGB colour space DCI-P3
Product Description
RAISE YOUR GAME. CARRY YOUR SQUAD. Power up
your play Draw more frames and win more games with the
brand new Strix G16 and Windows 11 Pro. Backed up with
a dedicated MUX Switch and NVIDIA Advanced Optimus
support, the Strix G16 unlocks the true potential of its
hardware. With PCIe Gen4x4 SSD storage and up to 32GB
of 4800MHz DDR5 RAM, large game libraries and intense
multitasking sessions are a breeze for this gaming
machine. GPU Power Unleashed Top-tier components
require power, especially when it comes to maximizing
your GPUs performance. Powered by NVIDIA DLSS 3,
ultra-efficient Ada Lovelace arch, and Max-Q Technologies,
the NVIDIA GeForce RTX 4090 Laptop GPU is fully
unleashed with a max TGP of 175W with Dynamic Boost.
NVIDIA Advanced Optimus With NVIDIA Advanced
Optimus, the laptop can automatically route frames from
the discrete GPU directly to the display using a MUX
switch, bypassing the integrated graphics. This pathing
improves performance 5-10% compared to machines
without a MUX Switch, making sure you get the absolute
best gaming experienceall without needing touch a single
button. This automatic switching also preserves your
machine's battery life, as it can dynamically transition
between the high power discrete GPU and the lower power
integrated GPU. No matter what youre doing, your machine
will switch to the most optimized mode without you having
to lift a finger. Blazing Fast DDR5 Memory Leveraging the
brand new DDR5 standard, enjoy a huge generational
performance jump to 4800MHz, with write times 50% faster
than DDR4 equipped machines. This ultra fast memory
makes all aspects of the laptop feel snappy, from intense
gaming to light web browsing. Better. Faster. Stronger.
Take on even the largest projects with confidence and a
PCIe Gen4 SSD. With raw throughput up to 7000MB/s,
massive files and large games will load in the blink of an
eye. GeForce RTX 40 Series Laptops Beyond Fast for
Gamers and Creators AI-Powered Performance and
Lifelike Graphics* Get a quantum leap in performance in
games and creative apps with AI-powered DLSS 3 and
enable lifelike virtual worlds with full ray tracing. Accelerate
Your Ideas NVIDIA Studio takes your creative projects to
the next level. Unlock RTX and AI acceleration in top
creative apps, NVIDIA Studio drivers for max stability, and
a suite of exclusive tools to fast-track your creativity.
Optimized Power and Performance NVIDIA Max-Q is an
advanced suite of AI-powered technologies that optimize
your system for peak efficiency. This enables blazing-fast
laptops that are thin, quiet, and have amazing battery life.
*Cyberpunk 2077 image captured on a desktop with new
Ray Tracing: Overdrive Mode ON, shown for illustrative
purposes only. Actual performance varies by system.
Game. Stream. Create. The Strix G series is built from the
ground up for gamers and, of course, game developers.
The Strix G16 can run all of the latest game engines,
enabling you to unlock your creativity and try your hand at
making the next great game. Whether youre a digital artist,
streamer, video editor, or dabble with animation and game
development, the Strix G16 has all the horsepower you
need to take your creations to the next level. You have
what it takes to be the best on the battlefield, but are you
ready to design the next one? To accommodate such
powerful components, the Strix G16s chassis and
motherboard were both redesigned to accommodate our
new full-width heatsink, whose fins were moved even
closer to the exhaust vents for more efficient cooling. The
full-width heatsink is built from three different sections,
surrounding the motherboard with densely-packed fins for
a total surface area of 174,183mm, a 71% increase from
the 2022 Strix G15. This design maximizes the available
pathing for hot air to escape the machine and drastically
increases overall airflow. Finally, most gaming laptops
have a dual fan cooling system, but the G16 was able to
push the performance envelope even further with the
introduction of a third fan that helps keep the GPU and
VRAM cool. Paired with seven heatpipes and
Conductonaut Extreme liquid metal on both the CPU and
GPU*, the G16s cooling system is a marvel of engineering.
*Conductonaut Extreme liquid metal is applied to the GPU
on models with an RTX 4080 GPU only You cant beat the
enemy if you dont see them coming. The Strix G16 has
ultra-fast panel options for every scenario, making sure
youll never miss a moment. For the first time ever, this 16-
inch machine offers a QHD 240Hz Nebula display. A 16:10
panel with 500 nits of brightness, 100% DCI-P3 coverage
and 3ms response times, the Strix G16 has pixel-perfect
precision even in the most frenetic firefights. The Strix G16
is also available with a Full HD 165Hz panel, with each
option offering fantastic color, Dolby Vision, Adaptive-Sync
support, and an 90% screen-to-body ratio for a stellar
gaming and viewing experience. Designed to Win. Built for
Victory. The Republic of Gamers was built by those who
love to play video games. All ROG designs come with
gamers in mind, from the chassis, lighting integration,
software controls, and macro functions. These ROG
exclusive design features not only give you a competitive
advantage, but they make sure you never blend in with the

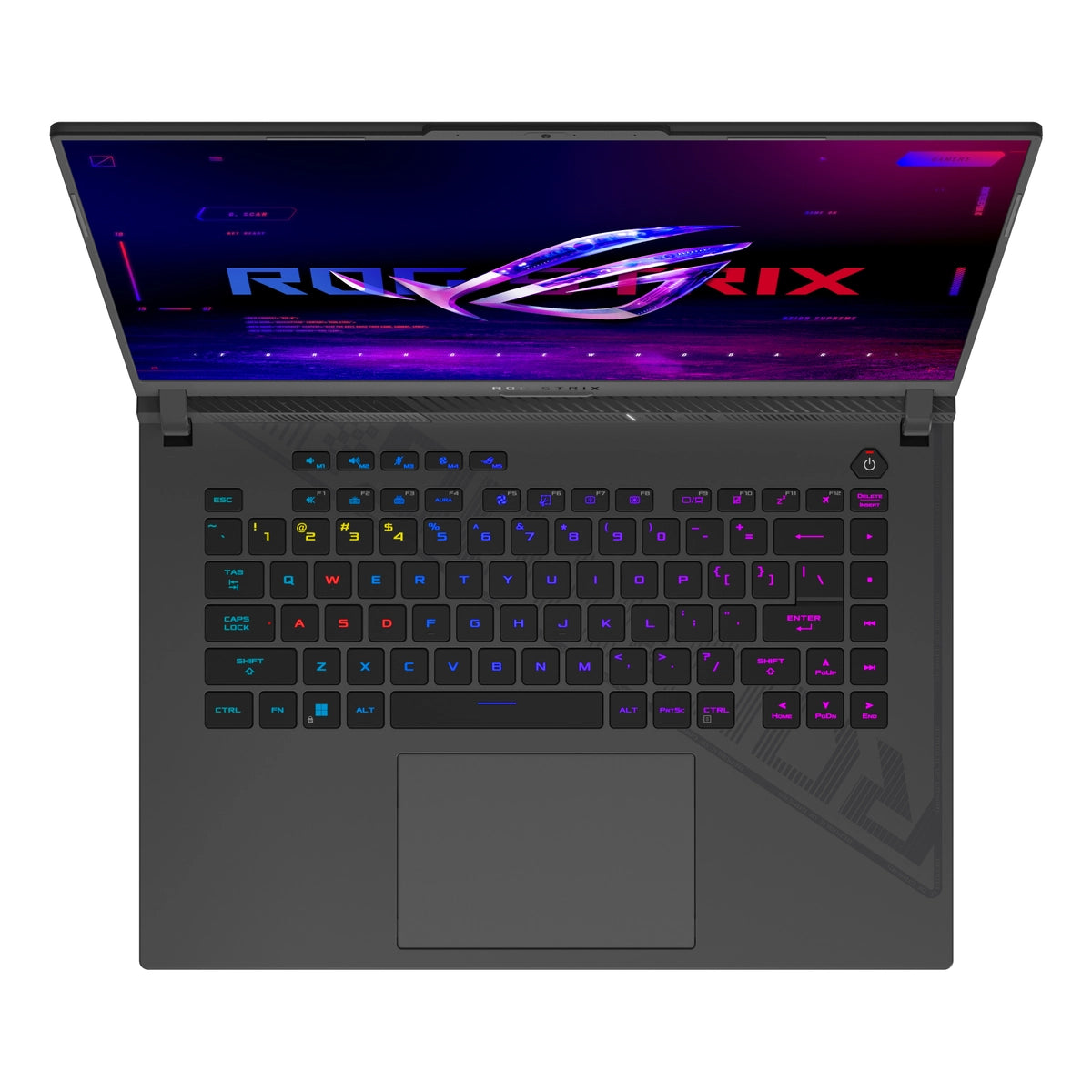

crowd. KEYBOARD PRESS THE ATTACK The difference
between victory and defeat can be separated by a single
keystroke, so the Strix G16 has a full-size keyboard
designed to secure the win. Overstroke technology offers
sublime work and play, reducing key actuation and
improving responsiveness. Built with gamers in mind, the
keyboard features spaced function keys for intuitive
identification and dedicated hotkeys for quick access to
essential commands. Large arrow keys allow for more
accurate control in the heat of battle. A larger touchpad
means easier tracking across all of your applications, while
per-key RGB lighting lets you choose from millions of
colors on every key for endless customization. You can
also create game specific layouts via Armoury Crate,
making every game feel unique. Dedicated hotkeys
Dedicated gaming hotkeys sit just above the left side of the
keyboard for quick access to the volume and mic mute
controls, operating modes, and Armoury Crate. They are
also fully customizable, and can be programmed to launch
apps, set as a function key, or used as a macro. The Strix
G16 has all the tools you need for victory. Overstroke
technology Exclusive ROG Overstroke technology registers
keypresses earlier in the stroke, enabling a more
responsive experience for serious gaming and work.
Triggering earlier means faster, effortless inputs with
greater accuracy. Large touch pad Improve everyday
comfort and usability with a 10% larger touchpad, and new
for 2023, the G16s touchpad also comes with a glass
coating for a more premium feel. More space means
greater precision along with more comfortable hand
movements and gestures while youre navigating. Despite
still being a 15-inch chassis, the G16 also now includes a
touchpad-based NumberPad, giving you even more
options when using your device. ID DESIGN COLORIZE
YOUR LIFE Not every gamer is the same, so the Strix G16
comes in two colors to better reflect your sensibilities. For a
more stealth look, the classic Eclipse Gray keeps the true
power of your machine under wraps. For those who enjoy
making a statement, Volt Green is a bold choice that
stands out from the crowd. Subtle detailing The Strix G16s
pixel art accents have been redesigned for 2023, giving the
chassis more flavor and flair, while still being easily
identifiable as an ROG machine from across the room.
Bold accents For added visual interest, the Strix G16 also
features a paint specking pattern above the rear exhaust
ports. Inspired by graffiti art and the cyberpunk aesthetic,
even casual passersby will notice that the Strix G16 has
more attitude than other gaming machines. Stun at every
angle Thoughtful details set this laptop apart from the
competition. Our 360 design philosophy puts subtle but
distinctive elements across every part of the machine. The
dot matrix design splashed across the lid cuts down to
meet cross-hatched vents beneath the base. An expansive
rubberized grip holds the laptop firmly in place and makes
it easier to carry. Typographic elements around the trim
subtly show off your ROG pride. Studio-quality Sound Dual
Dolby Atmos-powered speakers create an authentic sound
stage for your games. Hi-Res audio ensures you hear your
music in the same quality it was recorded. Two-Way AI
Noise Cancelation processes both incoming and outgoing
audio to filter any errant background noises, making sure
that your calls, chats and streams come through without
distraction. Two-way Ai Noise Cancelation Our advanced
Two-Way AI Noise Cancelation technology runs on the
CPU, which frees up the GPU to hit higher FPS. It works
with any input device and also with downstream
connections, letting you remove noise from both your own
mic input and from incoming feeds. Noise-canceling
settings can even be customized per program, filtering
specific apps like voice chat without affecting game audio
you want to remain untouched. Immersive Sound Richer
audio draws you more deeply into gameplay and media.
Virtual 5.1.2-channel surround sound powered by Dolby
Atmos enhances spatial immersion with more nuanced,
layered sound effects that you can optimize with specially
tuned preset modes for movies and games. All Day
Endurance The Strix G16 is ready to go the distance.
Featuring a 90Wh battery, the laptop can easily browse the
web for hours away from the wall before needing a
recharge. For flexibility on the go, USB Type-C charging is
supported up to 100W. When charging using the supplied
330W power adapter, the G16 can recharge from zero to
50% in just 30 minutes. Stay Connected In modern
multiplayer games, a stable internet connection is
imperative. The Strix G16 is ready to join the fight with a
dedicated RJ45 port, as well as the latest Wi-Fi 6E wireless
standard. On Wi-Fi 6E supported networks, enjoy access
to the newest wireless band, free from clutter and
interference from your homes other wireless devices,
ensuring you never lag out again. Stay Connected When
you need to plug into the big screen, the dedicated GPU
powers an HDMI 2.1 port for the latest TVs and monitors,
increasing total bandwidth from 18 to 48Gbps, and
supporting up to 4K 120Hz and 8K 60Hz content. Two USB
Type-C ports allow for plenty of connectivityone for
DisplayPort and power delivery, and a second with
Thunderbolt 4 support. Gear Up and Game Upgrade your
Strix G16 in Volt Green & Eclipse Gray with a stealthy
bundle. Travel with confidence with the ROG backpack and
ROG Impact mouse. The kit also comes with our low profile
100W adapter for ultimate portability and minimal weight.
*Bundled peripherals may vary according to regions.
Please check with local vendors for exact offers. Xbox
Game Pass Ultimate Discover your next favorite game Play
over 100 high-quality games with friends on your PC,
console, phone or tablet for one low monthly price.* With
games added all the time, theres always something new to
play. *Terms and exclusions apply. Game catalog varies
over time, by region, and by device. See
xbox.com/gamepass and
https://www.ea.com/eaplay/terms, for details. Xbox Cloud
Gaming: Streaming limits apply. Requires compatible
controller (sold separately), supported device and Xbox
Game Pass app; see system requirements. System
requirements vary by game; performance scales with
higher-end systems. **The EA logo and Battlefield are
trademarks of Electronic Arts Inc. FIFA is a copyright
and/or trademark of FIFA. All rights reserved.
Manufactured under license by Electronic Arts Inc. STAR
WARS & TM 2019 Lucasfilm Ltd. All rights reserved.
